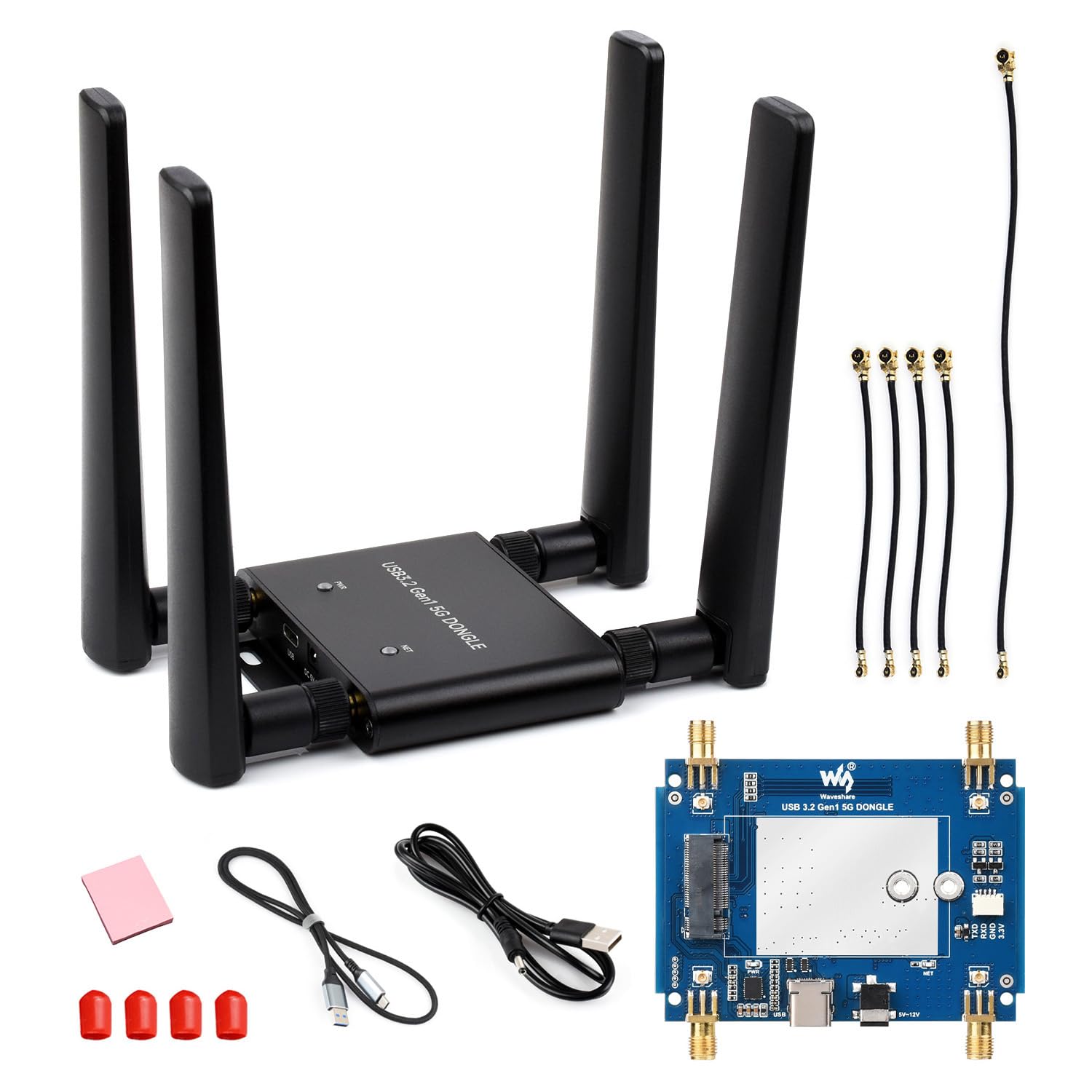

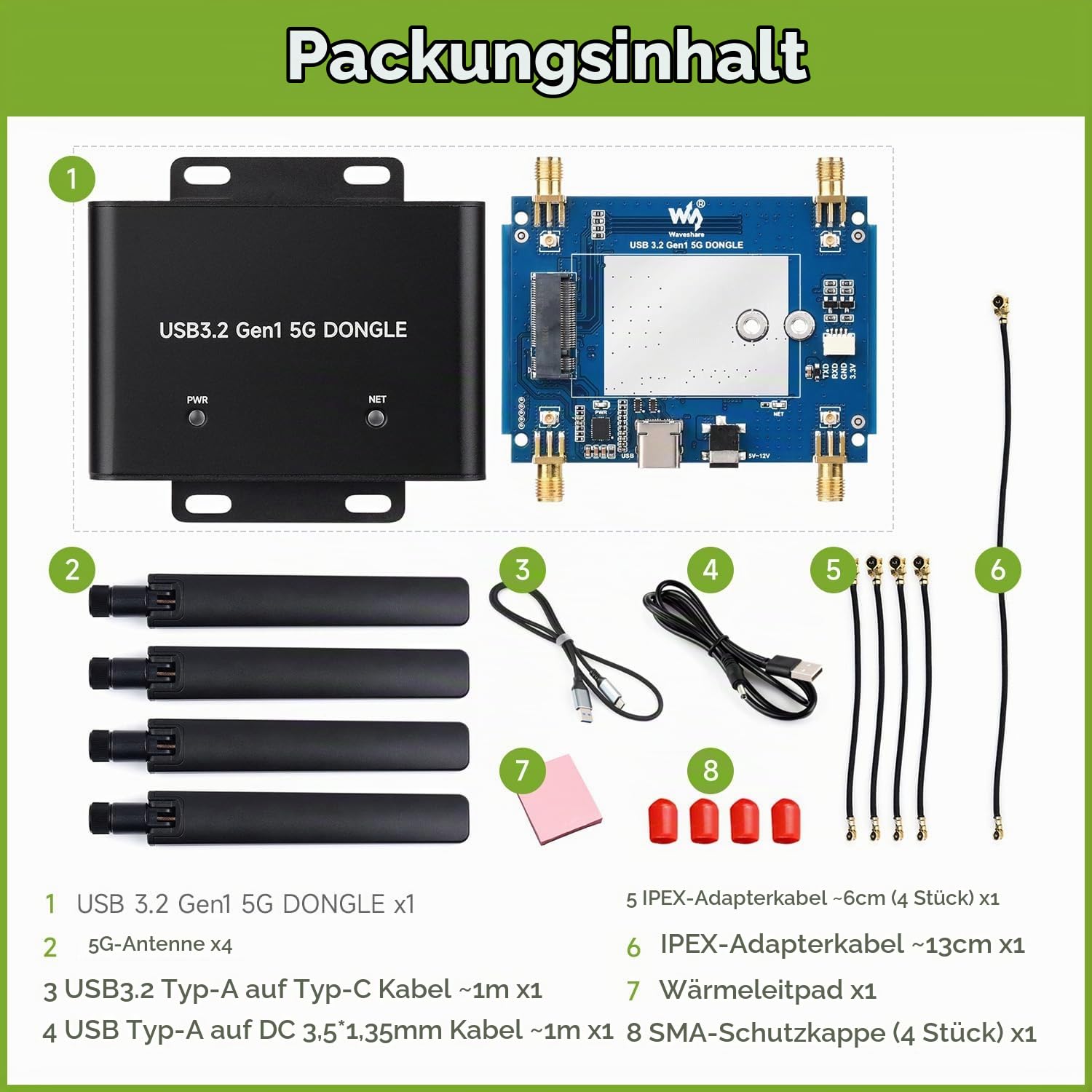

Waveshare 5G DONGLE Expansion Board ONLY, USB 3.2 Port, Aluminum Alloy Case, Quad Antennas, Onboard M.2 Key B Interface, Does NOT Include 5G Module

Marke: Waveshare
Hardware-Schnittstelle: USB 3.2 Gen 2×2
Farbe: Schwarz
Kompatible Geräte: Desktop, Raspberry Pi
Datenlink-Protokoll: USB
Kompatible Betriebssystem-Familie: Windows
Anzahl der Artikel: 1
Hersteller: Waveshare

- * Note: the 5G module is NOT included in the USB 3.2 Gen1 5G DONGLE kit and needs be purchased separately. It is recommended to select the kits with 5G module.

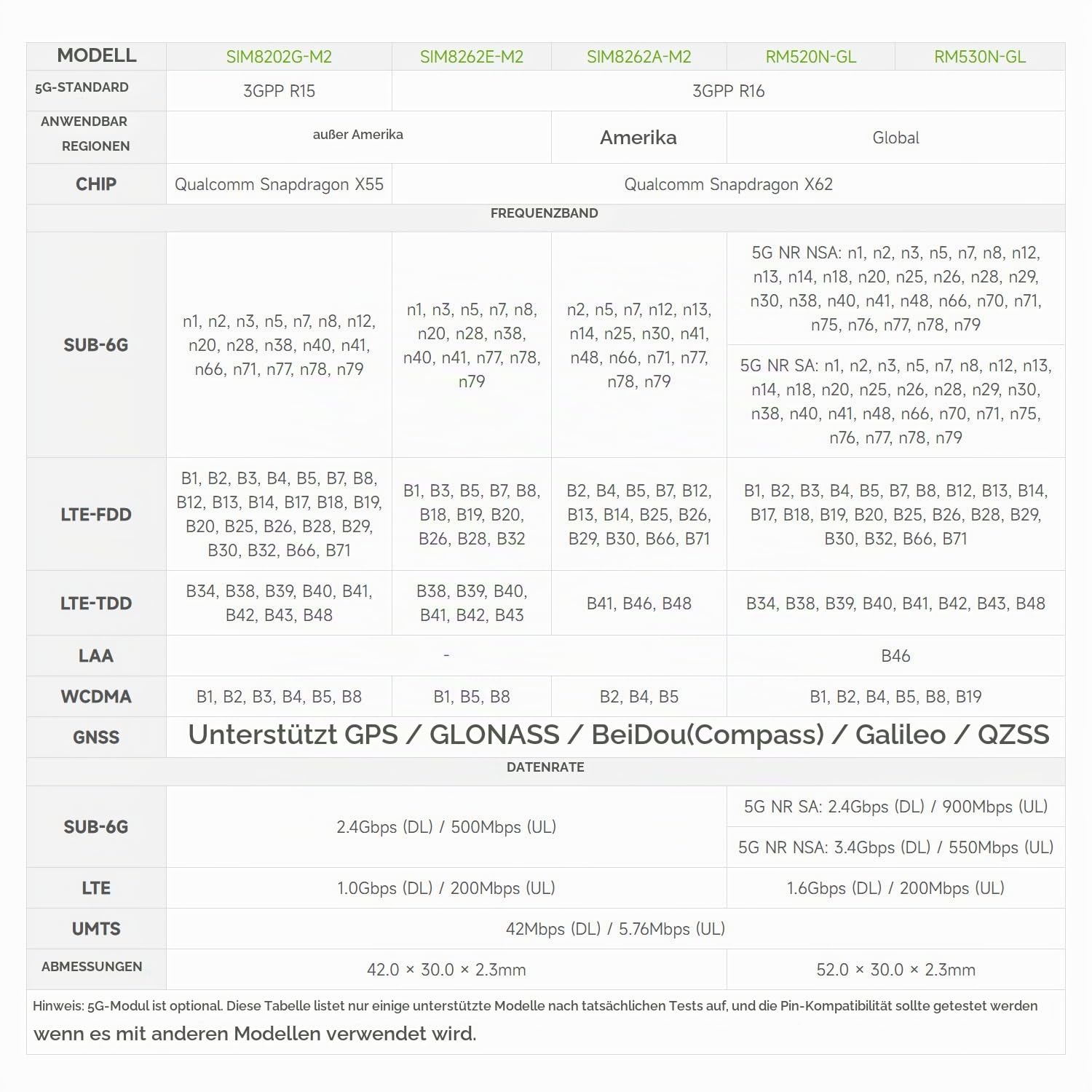

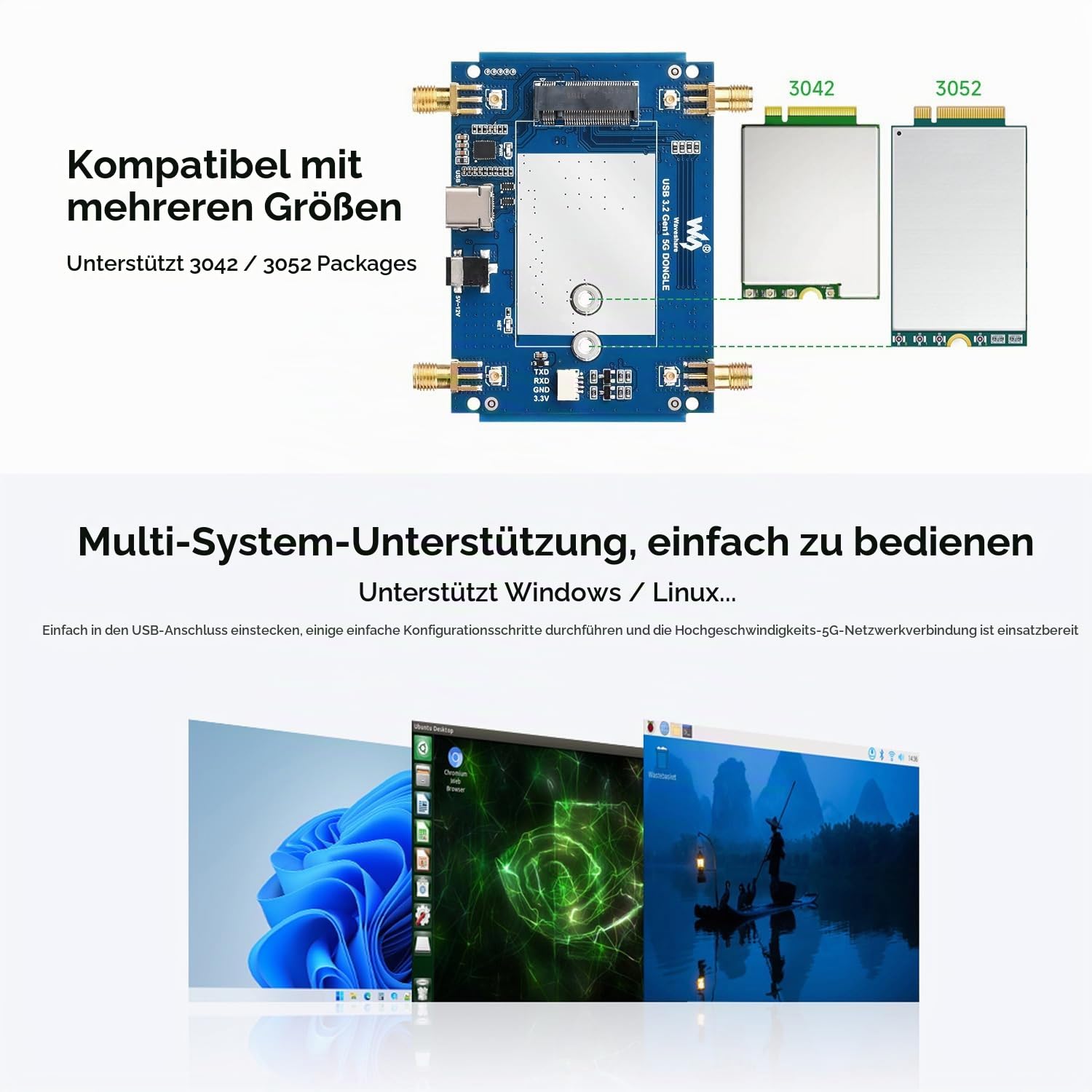

- Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from brands such as SIMCom, Quectel, and Fibocom. Supports 5G modules in 3042 / 3052 packages such as SIM82XX, RM5XX and FM650XX series

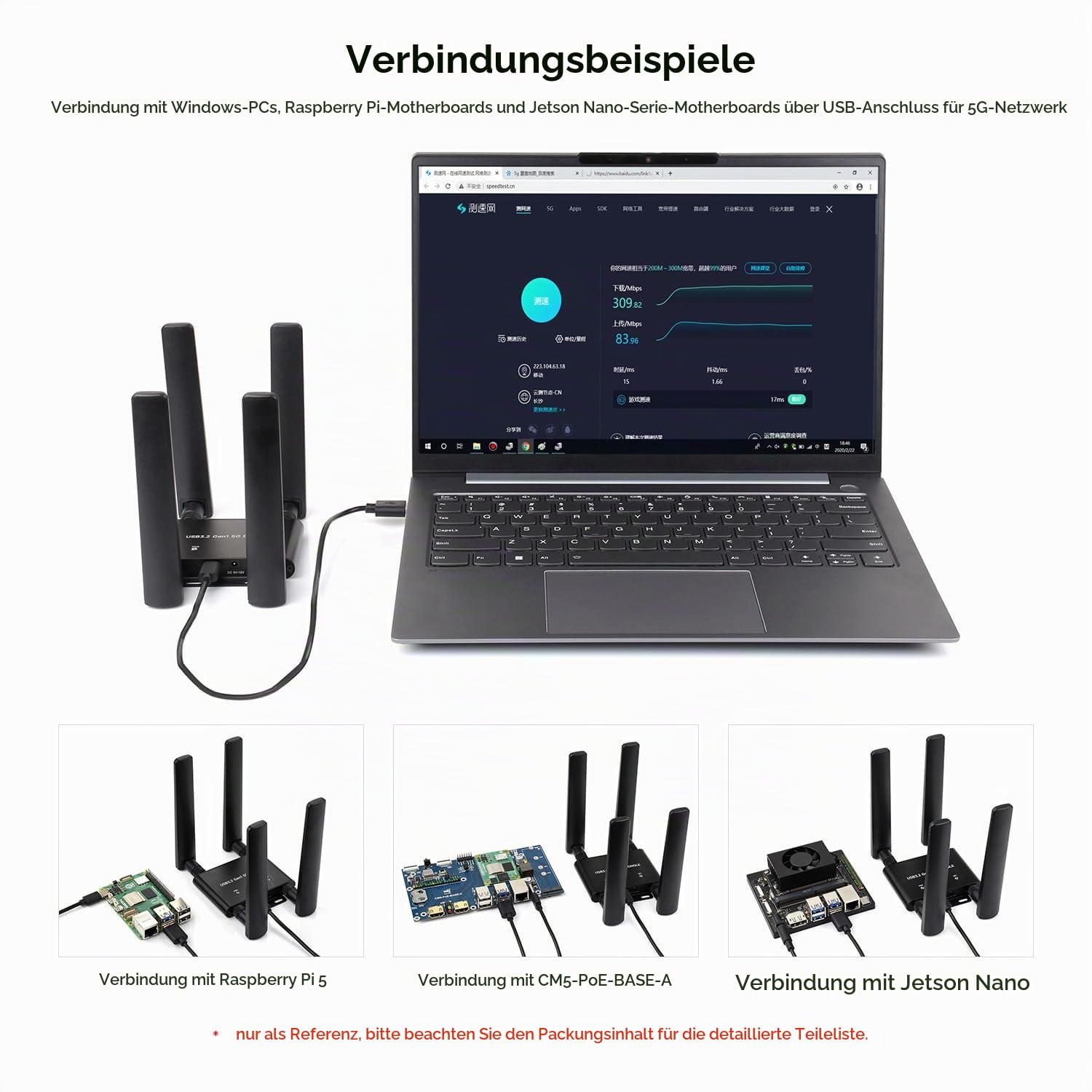

- Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input. Built-in UART communication interface for data transmission and other functions with some modules
- Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas. Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port. Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5x6) package, dual card single standby, switchable via AT command
- Onboard power supply and network indicators for checking working status of the module and 5G debugging. Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
