Industrie Mini PC Lüfterlos Fanless Embedded Computer i5-1235U Dual LAN 2COM 8Pin GPIO 6USB DP+HD 4K60Hz Dual DisplayAuto Power On DDR4 8G RAM 128G SSD, Barebone

Marke: ROUAFWIT
Betriebssystem: OS
CPU-Modell: Intel Core i5
CPU-Taktfrequenz: 4,4 GHz
Cache-Größe: 12 MB
Grafik-Coprozessor: UHD Graphics for 12th Gen Processors
Spezifische Verwendungsmöglichkeiten für Produkt: Multimedia, Persönlich, Spiele
Modellname: RT101-IPC-2COM-8P-1235U
Enthaltene Komponenten: mini pc x1, powder adapter x1 , Power Cable x1 , 8GPIO Terminal Block x1 ,2×2 Terminal Block ×1, Mounting Ears ×1, Mounting Ear Screws ×4,DIN Rail Bracket ×1,DIN Rail Bracket Screws ×2, Warranty Card x1Mehr anzeigen
CPU-Hersteller: Intel

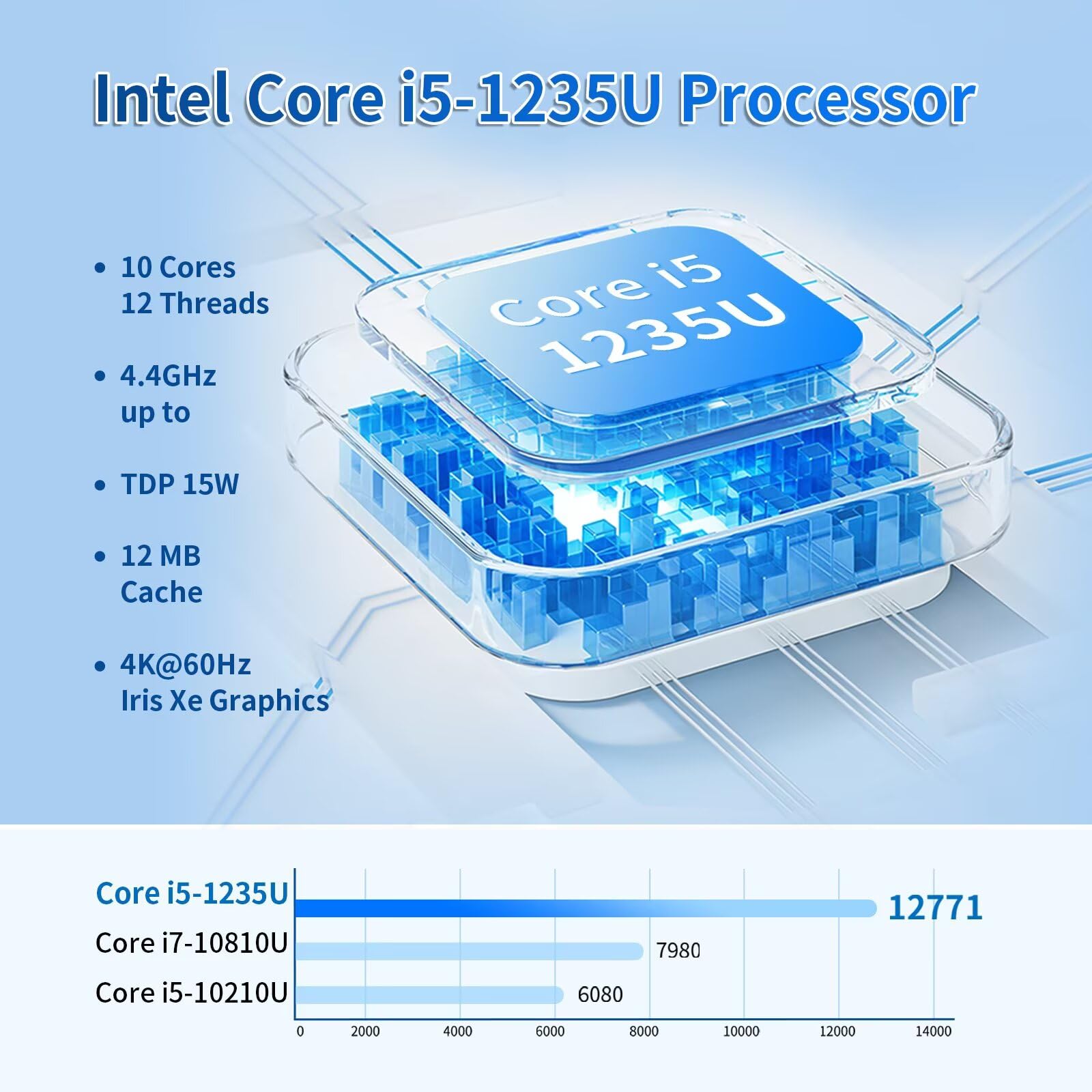

- ROUAFWIT industrial computer is equipped with 12th Gen Core i5 processors, featuring 10 cores and 12 threads, with a maximum frequency of 4.4GHz and TDP 15-55W. It is stable, reliable, and operates with low power consumption, providing continuous and stable computing power for industrial environments. Even under long-term high load, it can maintain excellent performance and stability. It supports Watchdog function, Wake-on-LAN, and PXE diskless boot

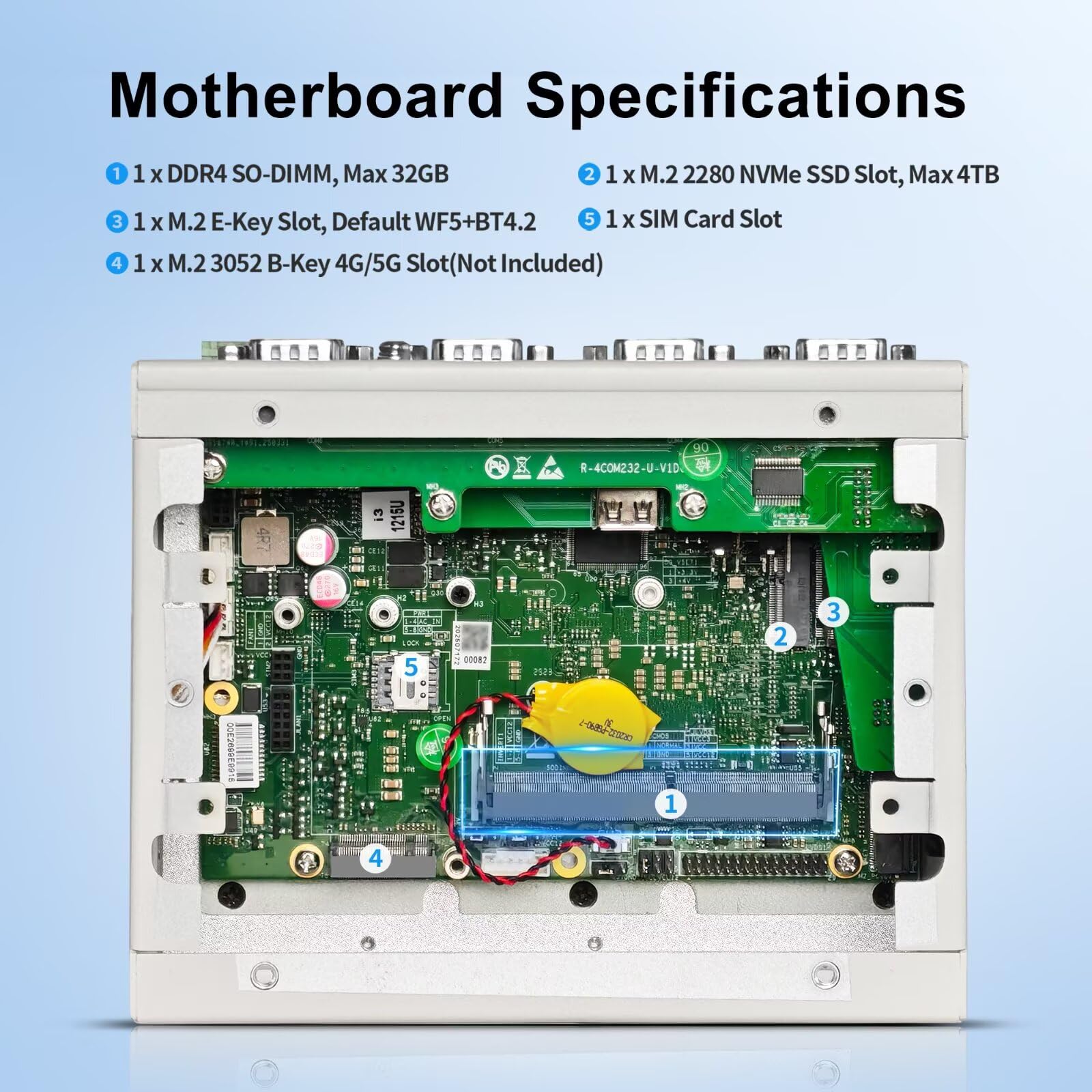

- Memory and Storage: The ROUAFWIT industrial computer is equipped with 1 x SO-DIMM DDR4 2666/2933/3200MHz, supporting up to 32GB memory, and 1 x M.2 2280 M-Key SATA or NVMe SSD slot. It also includes 1 x M.2 2230 E-Key slot for Wi-Fi module, 1 x M.2 3052 B-Key slot for 4G/5G module with a SIM card slot
- Rich Interfaces and Compatibility: It features 2 x i210 LAN, 4 x USB3.2, 2x USB2.0, and 2 x COM ports, among which COM1/COM2 can be set to RS232/422/485 mode in BIOS.In addition, it provides 1 x HD interface, 1x 8Pin GPIO Port, 1 x HD port, 1x HDD status LED, 1x Power Button, 1x Power status LED, 1x MIC port, 1 x DC 9–36V power input port.It is compatible with a variety of open-source operating systems

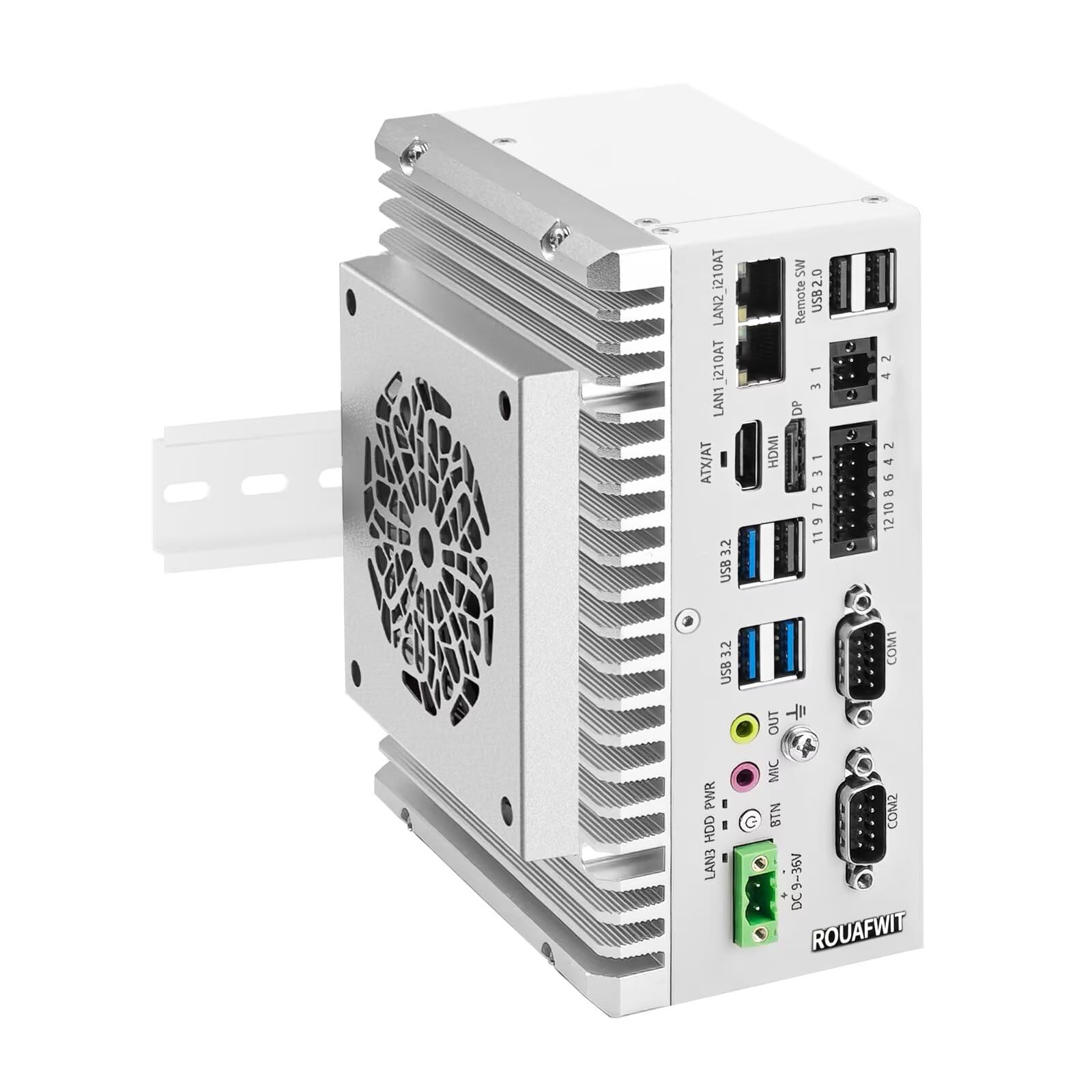

- Cooling and Display: The enclosure is fully sealed and uses an aluminum alloy body for heat dissipation, eliminating the risk of internal dust or failure caused by traditional fans. It provides an HD port for external displays, equipped with HD Graphics core, supporting extended displays and synchronous or asynchronous touch operation

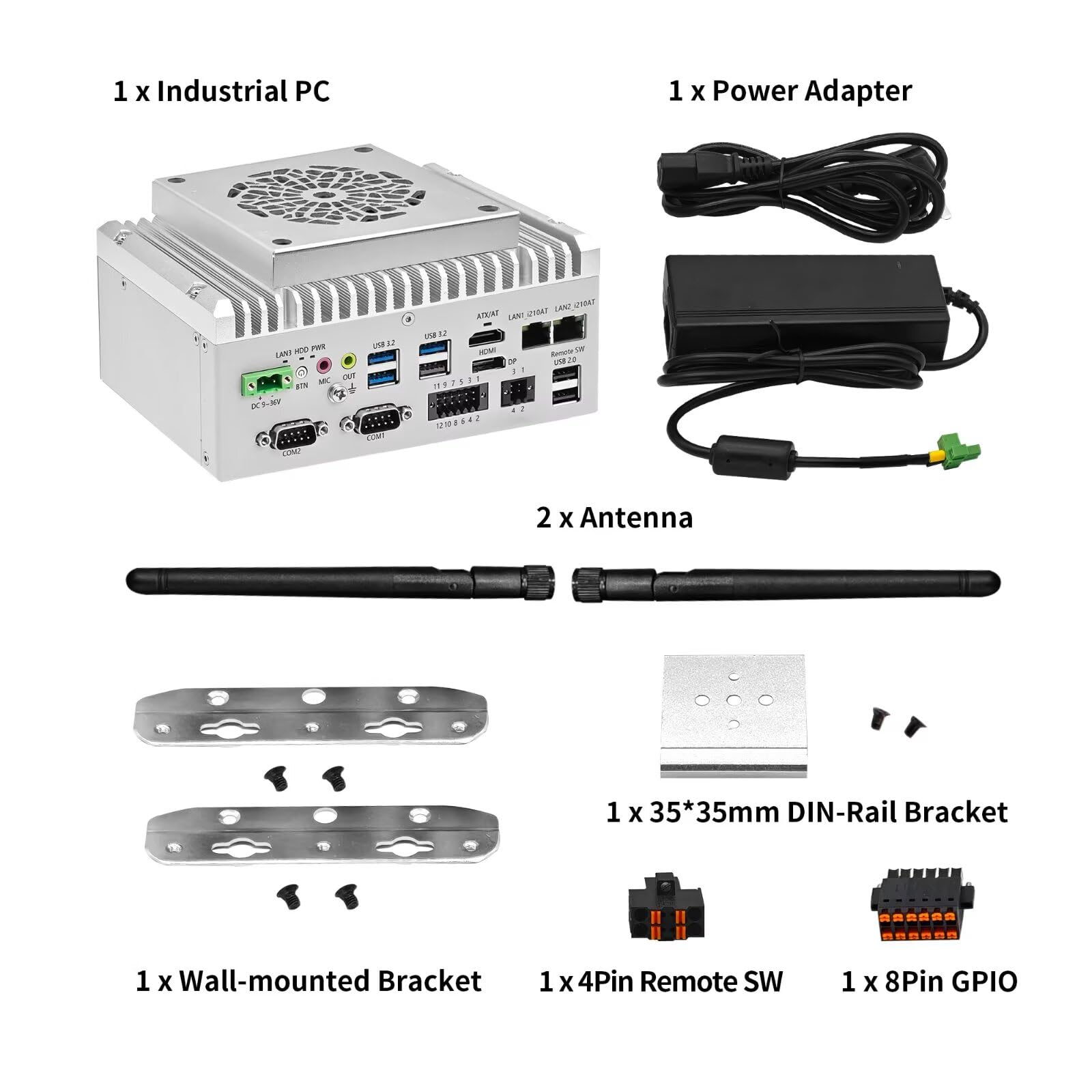

- Features and Package: Power Supply: DC 9–36V wide voltage input, offering both round and terminal-type locking power connectors. Installation Options: wall-mount and DIN-rail installation. Package Includes: 1 x Mini pc, 1 x Power Adapter, 1 x Power Cable,1 x GPIO Terminal Block,1 x 2*2 Terminal Block1 x Mounting Bracket, 4 x Mounting Screws,1 x DIN-Rail Bracket, 2 x DIN-Rail Screws
